ORANSAL SÜRÜCÜ KART

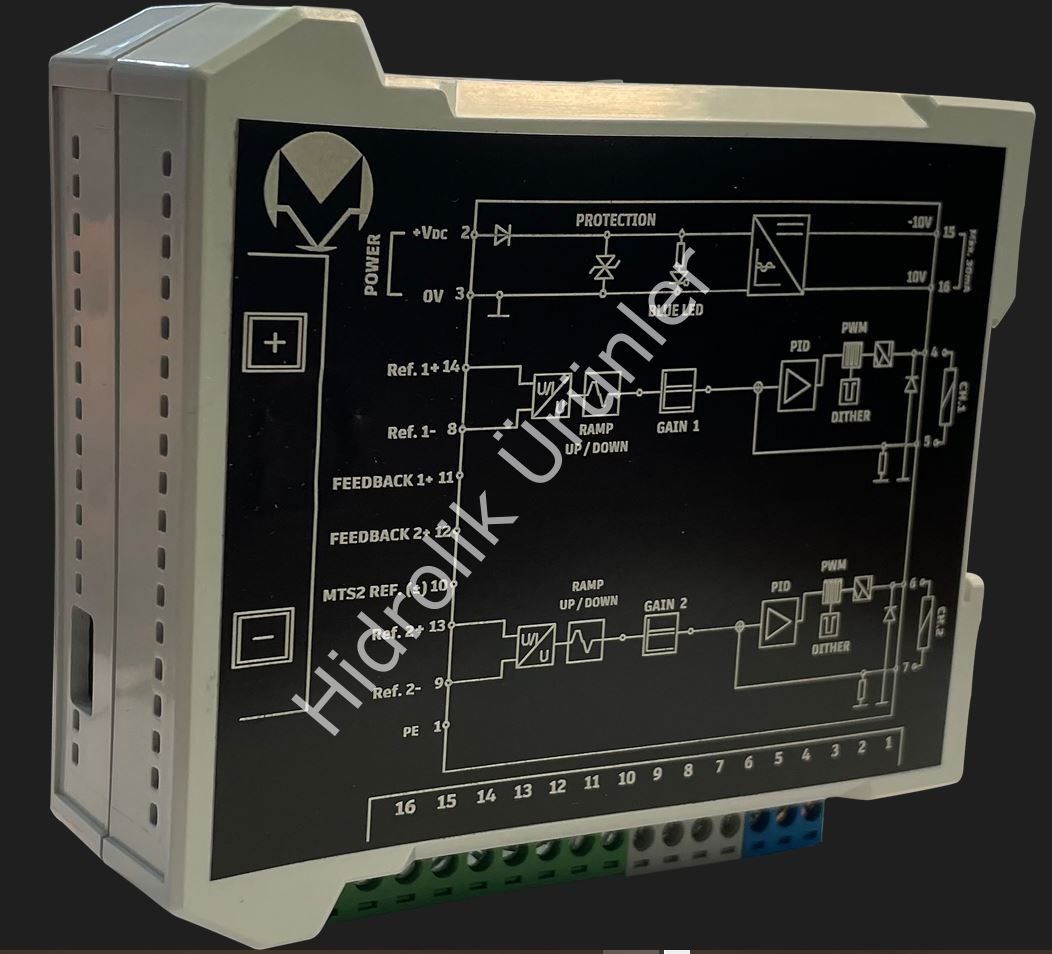

These manual displays information about the digital card MTS-* series 3.0, universal amplifier for proportional valves.
0,00 TL KDV Dahil
Stokta Yok
ÜRÜN ÖZELLİKLERİ
|
PARAMETER |
UNIT |
|
|
Power Supply Voltage |
V DC |
12-30 (Ripple Included) |
|
Power Consumption |
W |
Max 70 |
|
Max. Output Current |
A |
6 (For MTS3) |
|
Output Current |
A |
Max 2.5A (For Single Channel) Max. 5A (For Double Channel) |
|
Electrical Protection |
|
Overvoltage Protection Short Circuit Protection Reverse Polarity Protection |
|
Reference Signal Input |
V mA |
0-10V
|
|
Resolution |
mA |
1 |
|
Frequency |
Hz |
125-500 |
|
Interface Connection |
|
USB HID (Mini USB) |
|
Operating Temperature Range |
°C |
-20 / +70 |
|
Connector |
|
Plug-In Terminal Block with Tightening Screws: 16 Poles |
|
Housing Dimensions |
mm |
31x90x118 |
|
Housing Material |
|
ABS |
|
Mass |
Kg |
0,175 |
